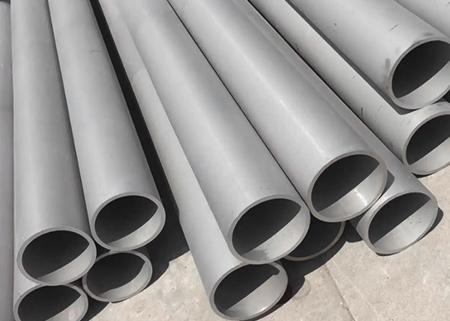

Stainless Steel Pipes
Premium corrosion-resistant stainless steel pipes for oil, gas, and chemical industries, offering seamless reliability or cost-efficient welded options. Globally certified, precision-engineered for extreme durability and compliance. Export-ready solutions with tailored specs and seamless logistics support.
Product Overview
Material Composition & Properties
Element | Content (%) | Function |
|---|---|---|
Chromium (Cr) | 16–26% | Enhances oxidation resistance |
Molybdenum (Mo) | Specify value | Improves pitting & crevice corrosion resistance |
Other Elements | As required | Custom alloy properties |
Manufacturing Process
Seamless Pipes: Produced via extrusion or rotary piercing for uniform microstructure and high pressure tolerance.
Welded Pipes: Fabricated using automated TIG welding, ensuring precision and consistency.
Technical Specifications
Dimensions & Tolerances
| Parameter | Range |
|---|---|
| Outer Diameter | 1/8″ – 48″ (3.18 mm – 1219 mm) |
| Wall Thickness | 0.5 mm – 50 mm |
| Length | 6m standard, custom cuts available |
Mechanical Properties
| Property | Specification | Notes |
|---|---|---|
| Tensile Strength | ≥ 620 MPa | Ferritic/Austenitic grades |
| Yield Strength | ≥ 450 MPa | |
| Hardness | ≤ 290 HB | Brinell Hardness |
Standards & Certifications
ASTM A790/A790M-22: Certified for corrosion resistance and stress corrosion cracking (SCC) performance.
ISO 9001: Quality management compliance.
NACE MR0175: Suitable for sour service environments.
Applications
Oil & Gas: Ideal for pipelines, offshore platforms, and sour gas handling.
Chemical Processing: Resistant to acidic and alkaline media.
Construction: Structural support in high-humidity coastal areas.
Water Treatment: Long-term durability in desalination plants.
Why Choose Our Stainless Steel Pipes?
Corrosion Resistance: Superior performance in chloride-rich and high-temperature environments.
Customization: Tailored dimensions, surface finishes (polished, pickled), and testing (hydrostatic, ultrasonic).
Global Logistics: FOB/CIF terms, ISO-certified packaging, and fast delivery to 50+ countries.
FAQ
What's the difference between seamless and welded SS pipes?
Seamless Pipes: No welding joints, higher pressure resistance, and uniform structure. Best for high-stress applications (oil/gas, aerospace).
Welded Pipes: Cost-effective, available in larger sizes, suitable for low/medium-pressure uses (water supply, construction).
How do I choose the right grade (e.g., 304 vs. 316)?
- 304 (18/8 Stainless Steel): General-purpose, resists rust & acids (kitchen equipment, piping).
- 316 (Marine Grade): Contains Mo (Molybdenum) for saltwater/chemical resistance (shipbuilding, coastal structures).
- Duplex (2205): Higher strength, ideal for oil/gas and chemical processing.
Can I mix different grades/sizes to meet the 1-ton MOQ?
Absolutely! You can combine multiple grades, sizes, or specifications to reach 1 ton. Contact us for a customized quote.
What's the lead time for bulk orders?
Standard orders ship in 2–4 weeks. Expedited options are available—contact us for urgent needs.
